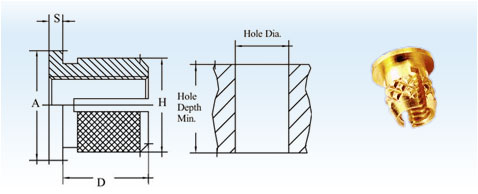

Flanged Press in Brass Inserts
Flange Unified Thread Inserts : Press In- his method involves using a press to push the insert into the boss hole. This method is reserved for the B1P and B2P styles. Installation is quick and easy and the pressure of the insert expansion into the plastic also adds a prevailing torque feature to the insert which is helpful in applications involving vibration. Applications involving materials with high flexural modals must be tested to ensure plastic does not crack during installation of in cyclic testing. Applications for Threaded Inserts for Plastic vary from communication equipment, the automotive industry, computer industry, and anywhere where strong durable threads are required in plastics. |
|
For use in straight holes | |
Mating screw expands the brass insert locking it in place | |
Flange provides larger loading surface | |
Can be installed in thermoset ot thermoplastic materials | |
Press in installation eliminates the need for hear or ultrasonic | |
Class 2B per ANSI/ASME B1.1 | |
Metric Thread Inserts : Press In - This method involves using a press to push the insert into the boss hole. This method is reserved for the B1P and B2P styles. Installation is quick and easy and the pressure of the insert expansion into the plastic also adds a prevailing torque feature to the insert which is helpful in applications involving vibration. Applications involving materials with high flexural modals must be tested to ensure plastic does not crack during installation of in cyclic testing. Applications for Threaded Inserts for Plastic vary from communication equipment, the automotive industry, computer industry, and anywhere where strong durable threads are required in plastics. Any kind of Flange Press In Brass Inserts can be developed and supplied exactly as per Customer Specifications & Requirement. |
|
For use in straight holes | |
Mating screw expands the brass insert locking it in place | |
Flange provides larger loading surface | |
Can be installed in thermoset ot thermoplastic materials | |
Press in installation eliminates the need for hear or ultrasonic | |
6H ISO Metric |
Threads of Brass Nuts and Brass inserts: Metric , NPT , BSP, BSPT, NPTF, UNEF, UNS, UNF , BSF, UNC, NPS, NPSM, BSW |
Sizes of Brass Nuts and Brass inserts: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 16mm 18mm 20mm 24mm 25mm 26mm 28mm 30mm 32mm 33mm 40mm 50mm M3 M4 M5 M6 M8 m10 m12 m16 M18 M20 M24 M25 M26 M28 M30 M32 M40 M50 1/8 5/32 3/16 1/4 5/16 3/8 1/2 7/8 3/4 1 11/4 11/2 2 2/12 |
